5 COMMON INTERCONNECT PROBLEMS SOLVED FOR YOU
Problem
How can the physiologic monitoring device of one manufacturer be inter-connected to that of a different manufacturer or device?
Solution
Our knowledge of the industry’s physiologic monitoring devices enables us to develop the cabling to interconnect them. This expertise helps you connect the output of one monitoring device directly to the input of another for simultaneous remote display of the ECG and IBP waveforms.
Problem

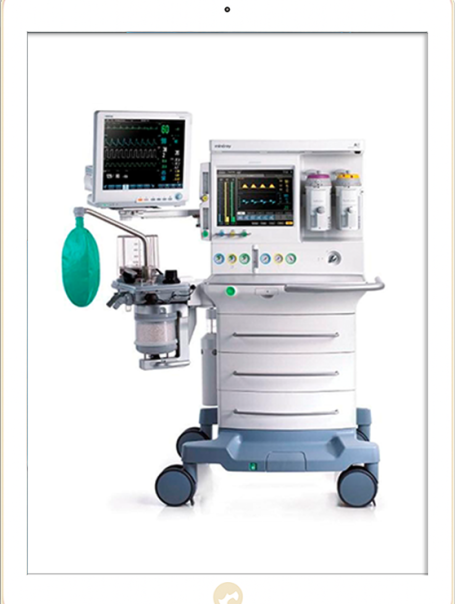

Multiple pieces of critical monitoring equipment in the CVOR and Hybrid OR need to receive ECG & IBP signal from patient. But many physiologic monitors are equipped with only one input and one output connection, if an output exists at all. And depending on the patient and procedure, adding extra sets of patient cables can be problematic; not to mention the cable clutter it brings.
Solution

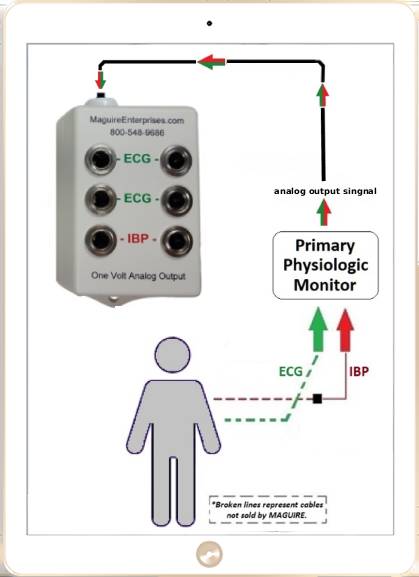

Increase the number of available output connections at the Anesthesia monitor by integrating our unique Output Multiplier. This product enables the simultaneous viewing of analog ECG and IBP waveforms on the remote display of a defibrillator, balloon pump, ultrasound, hemodynamic device, pacer programmer and more.
Problem

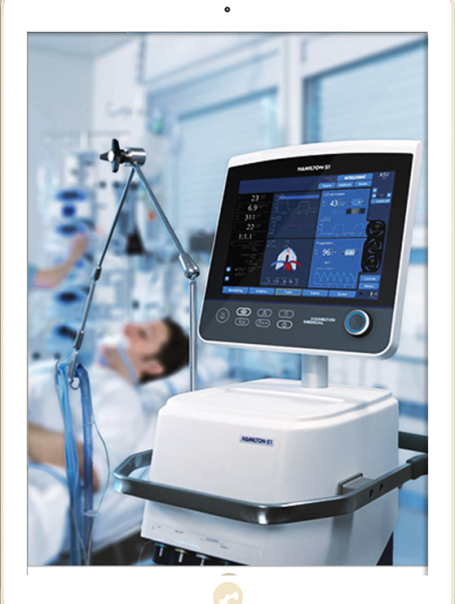

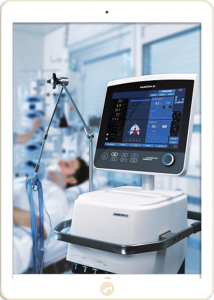

How does a facility meet JAACO standards regarding critical alarm alerts; particularly for instances when the nurse is located remotely?
Solution
Enable critical remote alarm monitoring at the nurses station with our Device Alarm Nurse Call Cables (DANCe). These reliable products connect between the equipment and the headwall nurse call jack near the patient’s bedside. Cables are available for a host of devices such as ventilators, infusion pumps, monitors and pulse oximeters. Use these alarm cables in conjunction with our Input Multiplier for simultaneous connection of up to three devices.
Problem
How does the Clinical Pacer Specialist ensure readiness to slave to the facility’s defibrillator and/or patient monitoring equipment?
Solution
Our exclusive Multi-Defibrillator Adapter is universally accepted for connecting the pacer programmer to the most current model defibrillators on the market. Used in tandem with our rugged pacer cables, you’ll be assured of a reliable ECG connection every time. Need to slave from the primary monitor? We’ve got you covered there too.
Problem
How can a manufacturer Sales Rep assure the customer or prospect that their device will successfully integrate with the facility’s existing patient monitoring equipment?
Solution
Talk to us in advance of your next presentation to learn how our products support your demos. Having this information equips you to answer customer questions and concerns regarding their needed interoperability. Our knowledgeable staff will quickly guide you toward the cable solutions needed for interconnecting ECG and IBP waveforms between all critical monitoring equipment.
FEATURED CATEGORIES
We simplify equipment connections so you can remain focused on observation, diagnosis, and delivery of care.
TOP SELLING PRODUCTS
Adapts Philips Healthcare monitor or Maquet-Datascope balloon pump single output to be three outputs..
i cable ECG or IBP Multiplier. 1/4″ three circuit ECG output of the Philips monitor, Maquet-Datacope balloon pump or other 1/4″ output to be three parallel phone jacks. Allows simultaneous connection to defibrillator, balloon pump, ultrasound, pacer programmer, cardiac output or other connected physiologic monitor. This multiplier not only expands the device’s single analog output, it can also expand the output of a MAGUIRE 257 Series multiplier or 414 Series Boom Cabling System. Use this product in combination with MAGUIRE multiplier cables to deliver ECG or IBP signal to desirable peripheral monitors. (excluding the bifurcated dual signal cable). Learn how these low cost products simplify patient setup, reduce cable clutter and enhance any physiologic monitoring system.
Connects Philips Healthcare monitor or Maquet-Datascope balloon pump to Physio Control LifePak defibrillator input.
i cable ECG. 1/4″ phone plug output of the Philips monitor or balloon pump to the LifePak defibrillator LP12, LP15, LP20, LP20e with code management module, 12 pin ECG input. This cable is also compatible with MAGUIRE 257 Series Multipliers and MAGUIRE 414 Series Boom Cabling System, each designed to deliver synchronized waveforms and simultaneous signal transfer onto multiple peripheral device displays. Learn how these low cost products simplify patient setup, reduce cable clutter and enhance any physiologic monitoring system.
Adapts GE Healthcare monitor single output to be multiple phone jack outputs.
i cable ECG & IBP Multiplier. 9 pin ‘Defib/Sync’ output of GE Carescape One monitor or PDM module adapted to be 1/4″ two circuit phone jacks, 4 ECG and 2 IBP outputs. Allows simultaneous connection to defibrillator, balloon pump, ultrasound, pacer programmer, cardiac output or other connected physiologic monitor. Use this product in combination with MAGUIRE multiplier cables to deliver ECG and IBP signal to desirable peripheral monitors. Learn how these low cost products simplify patient setup, reduce cable clutter and enhance any physiologic monitoring system.
Output Adapter for use with Physio-Control LifePak and Zoll Medical defibrillators.
Connects the Physio-Control and Zoll Medical defibrillator outputs to CRM Pacer Programmer cables.
Connects Puritan-Bennett ventilator alarm output to the nurse call headwall jack.
i cable Nurse Call. 4 pin Hirose normally open alarm output of the Puritan Bennett 700, 740, 760, 840 or 980 series ventilator to a 1/4″ two circuit right angle phone plug. This device alarm cable is compatible with the Maguire Device Alarm Input Multiplier, which expands the headwall jack to allow simultaneous monitoring of up to three devices.
Connects Maquet ventilator alarm output to the nurse call headwall jack.
i cable Nurse Call. 616 jack normally open alarm output of Maquet Servo-i, Servo-n, Servo-s and Servo-U ventilator to a 1/4″ two circuit right angle phone plug. This device alarm cable is compatible with the Maguire Device Alarm Input Multiplier, which expands the headwall jack to allow simultaneous monitoring of up to three devices.
Connects Philips Healthcare monitor or Maquet-Datascope balloon pump output to Zoll Medical defibrillator input or ultrasound input.
i cable ECG. 1/4″ phone plug output from the Philips monitor or Maquet-Datascope balloon pump to the Zoll R, X and M series defibrillator ECG input. Also from the Philips monitor to the balloon pump input or ultrasound, AAMI 6 pin ECG input. This cable is compatible with MAGUIRE 257 Series Multipliers and MAGUIRE 414 Series Boom Cabling System, each designed to deliver synchronized analog audio waveforms and simultaneous signal transfer onto multiple peripheral device displays. Learn how these low cost products simplify patient setup, reduce cable clutter and enhance any physiologic monitoring system.
Connects Respironics V60, V200, V1000, or Esprit series alarm output to the nurse call headwall jack.
i cable Nurse Call. 1/4″ phone plug three circuit alarm output of a Respironics V-60, V-200, V-1000 or Esprit series ventilator to the central station alarm monitoring system input, 1/4″ two circuit phone plug. An integrated switch allows a selection between ‘normally open or ‘ normally closed‘ system protocols. This device alarm cable is compatible with the Maguire Device Alarm Input Multiplier, which expands the headwall jack to allow simultaneous monitoring of up to three devices.
